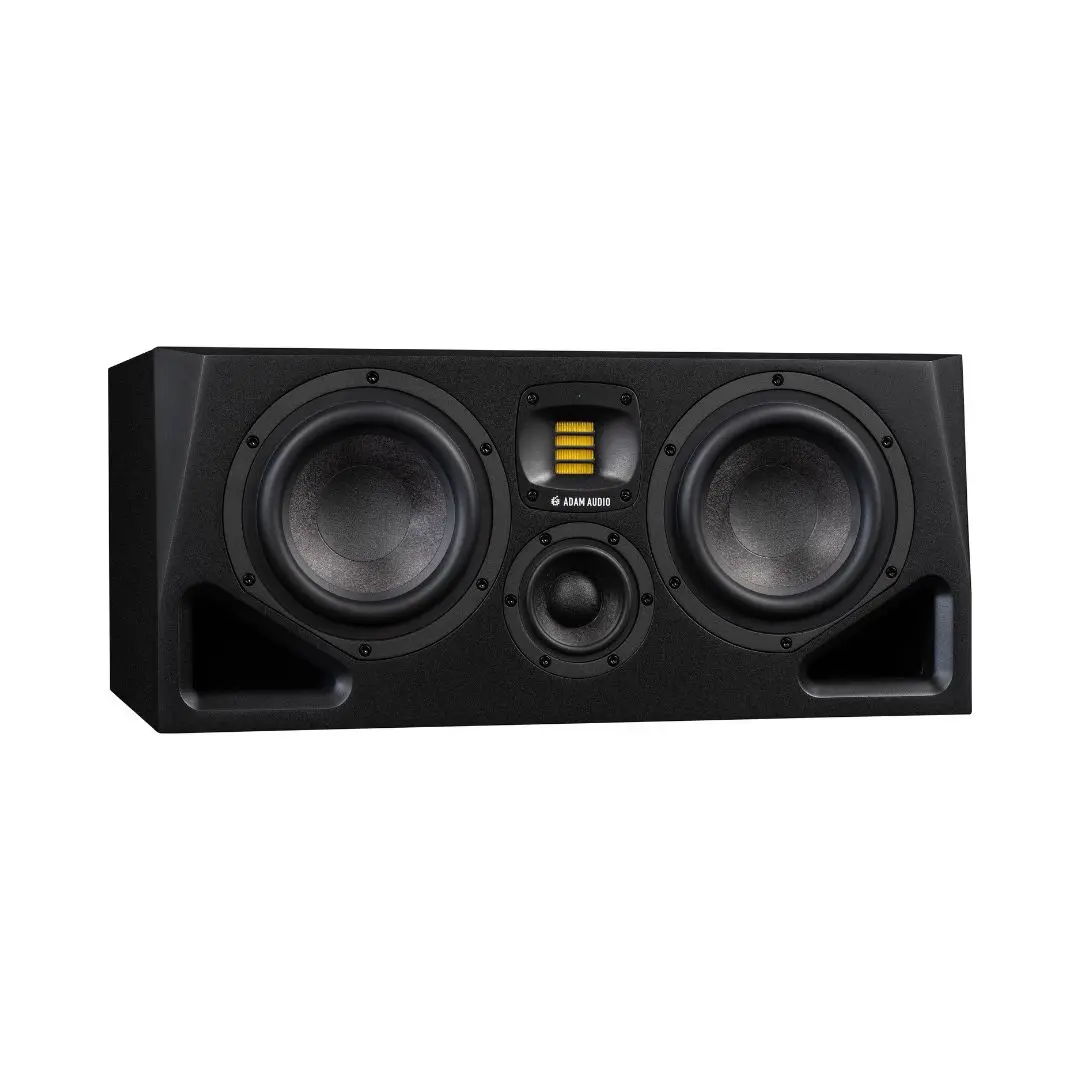

Adam Audio A77H 340W Dual 7″ Active 3-Way Midfield Studio Monitor

Original price was: AED 5,984.Current price is: AED 5,699.

Prices are inclusive of VAT

Brand :

Categories : ,

OUT OF STOCK

This product is out of stock, but you can request a quote.

The ADAM Audio A77H is a professional, dual 7″ 3-way studio monitor that provides rich, expansive sound, ideal for midfield use. It features a 250W Class-D amplifier for woofers, paired with 70W + 20W Class A/B amplifiers for the midrange driver and X-ART tweeter. Its rotatable HPS waveguide and X-ART tweeter deliver precise high-frequency dispersion. The midrange driver offers clear sound in the critical hearing range. With onboard DSP, customizable room adaptation, and Sonarworks integration, the A77H ensures tailored audio for various environments. Its design supports horizontal or vertical placement, making it versatile for any studio setup.

HPS Waveguide & Tweeter

The rotatable HPS waveguide and X-ART tweeter ensure precise high-frequency dispersion. This technology provides controlled horizontal sound while focusing vertically, giving flexibility for horizontal or vertical placement without compromising clarity.

Mineral Woofer

The Multilayer Mineral Woofer combines mineral stone fibers for a lightweight, stable design. This construction minimizes distortion and enhances bass performance, producing clear, powerful lows with high output for rich sound reproduction.

Hybrid Amplification

A combination of Class-D amplifiers for woofers and Class-AB amplifiers for midrange and tweeters delivers high power efficiency with low distortion. This dual-amplifier system optimizes sound reproduction across a wide frequency range, ensuring accurate, natural sound.

Room Adaptation & DSP

Room adaptation features customizable EQ bands for bass, desk, presence, and treble, allowing tailored sound adjustment for your environment. DSP technology enhances the monitor’s precision and predictability, while Sonarworks integration allows for advanced room correction and tuning.

  • Rotatable HPS waveguide with X-ART tweeter provides precise high-frequency dispersion for flexible positioning.
  • Dual 7″ MLM woofers deliver powerful, distortion-free bass with high output and low distortion.
  • Dedicated midrange driver ensures clear sound in the critical midrange frequencies with reduced distortion.
  • Class-D amplifiers for woofers and Class-AB for midrange/tweeters deliver efficient power and smooth sound.
  • DSP technology allows precise tuning and long-term compatibility with firmware updates.
  • Four adjustable room-equalization bands provide over 100 tuning options for various acoustic environments.
  • UNR offers dynamic response for creativity, while Pure delivers neutral accuracy for mixing and mastering.
  • A Control software allows remote, real-time EQ and delay adjustments over Ethernet.
  • Integrates with Sonarworks for room calibration and sound optimization based on acoustics.
  • Optimized bass-reflex system and cabinet design reduce vibrations and port noise for clearer bass.
  • Includes underside mounting interface for versatile placement in studio setups.
SpecificationDetails
Number of Included MonitorsSingle Monitor
EnclosureBass-Reflex/Ported, Shielded
Total Power Output340 W RMS
Tweeter1 × 1″ / 25 mm Ribbon
Midrange1 × 3.5″ / 8.9 cm Composite Cone
Woofer2 × 7″ / 17.8 cm Composite Cone
Voice Coil1.5″ / 38.1 mm
AmplifiersLF: 200 W RMS / 250 W Peak (Class-D) MF: 55 W RMS / 70 W Peak (Class-AB) HF: 55 W RMS / 70 W Peak (Class-AB)
Frequency Range34 Hz to 45 kHz ± 0 dB (-6 dB)
Frequency Response37 Hz to 41 kHz ± 3 dB
Maximum SPL106 dB (Peak)
Maximum Input Level+19 dBu
Protections and LimitingPeak Limiter, Thermal Limiting
EQ1 × HF Shelf 1 × HF Notch/Peak 1 × Low-Mid Notch/Peak 1 × LF Shelf
FiltersNo
Crossover Frequency400 Hz, 2.4 kHz
Phase AdjustmentNo
App-Based Signal ProcessingYes
Maximum Sampling Rate96 kHz / 24-Bit

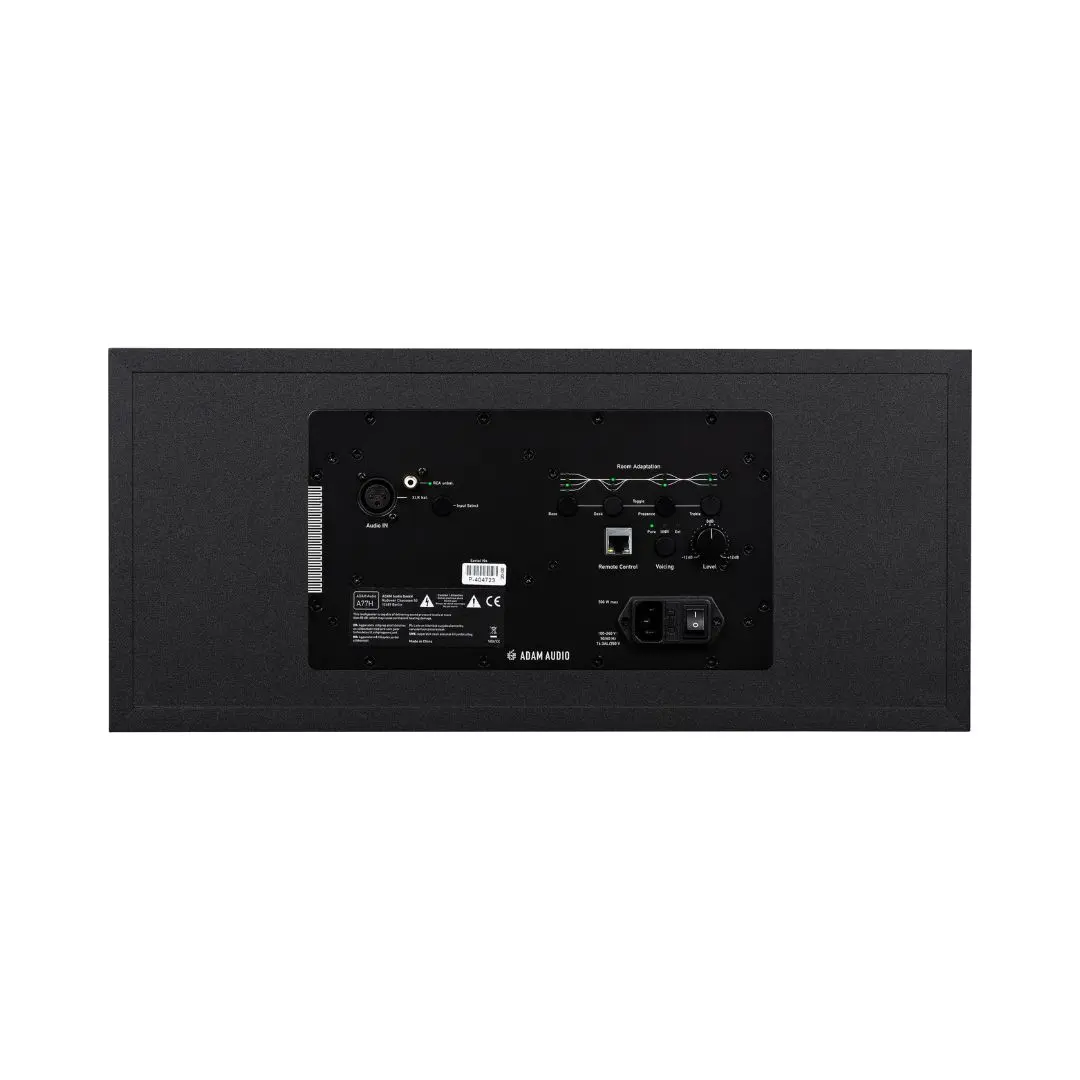

Audio I/O1 × XLR 3-Pin Balanced Line Input (9 kΩ) 1 × RCA Unbalanced Line Input (3.3 kΩ)
Digital Audio I/ONo
Network I/O1 × RJ45 Ethernet
USBNo
WirelessNo
Mobile App CompatibleNo
AC Input Power100 to 240 VAC, 50/60 Hz
Power Consumption500 W (Maximum)
ColorBlack
Monitor OrientationHorizontal
Mounting PointsNo
Dimensions (W x H x D)20.9 × 9.3 × 13.8″ / 53.1 × 23.6 × 35 cm (Each)
Weight37.7 lb / 17.1 kg (Each)
