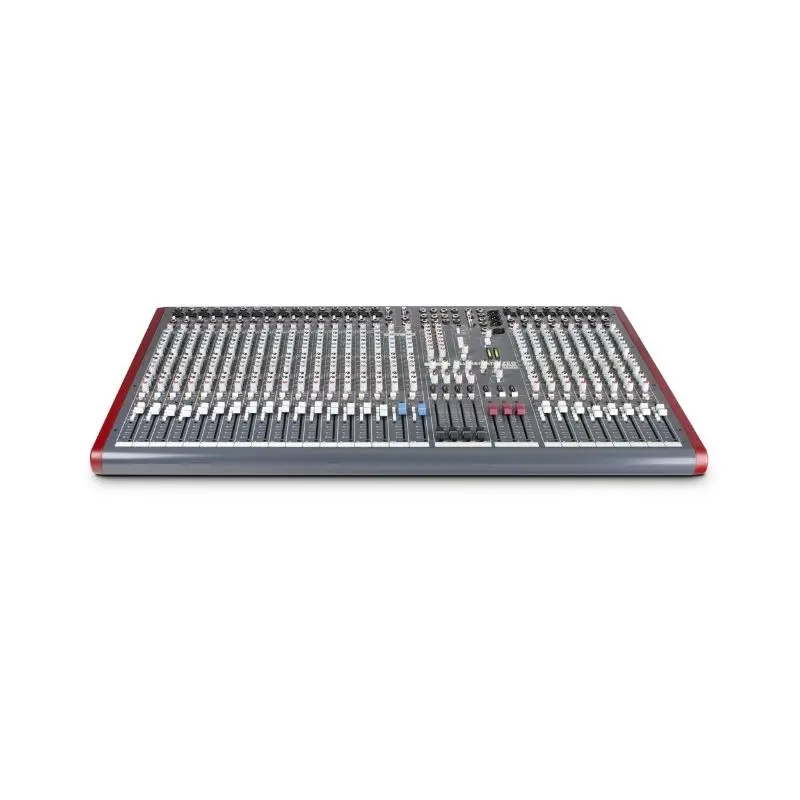

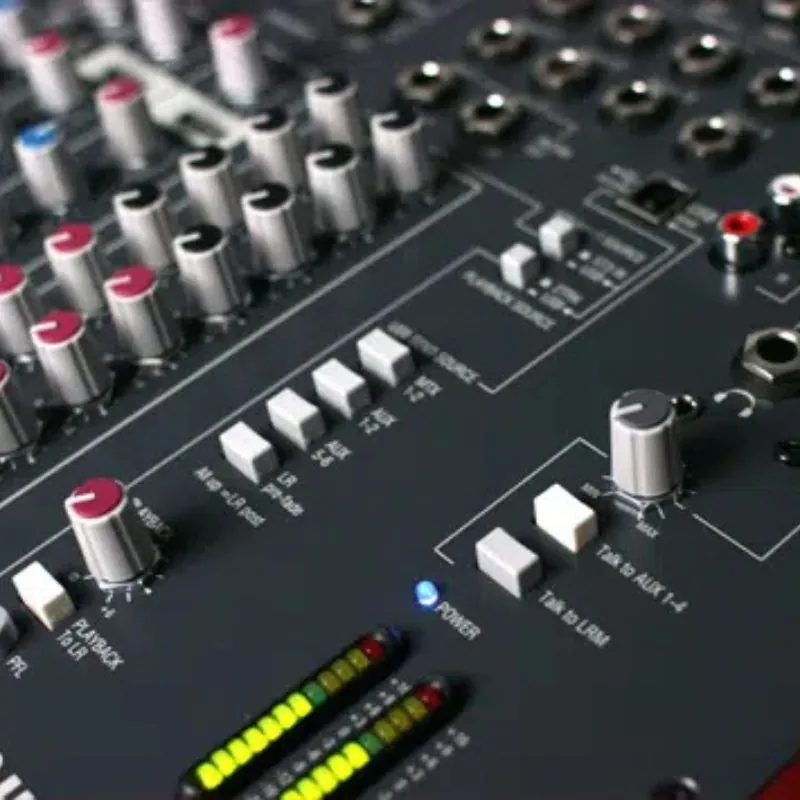

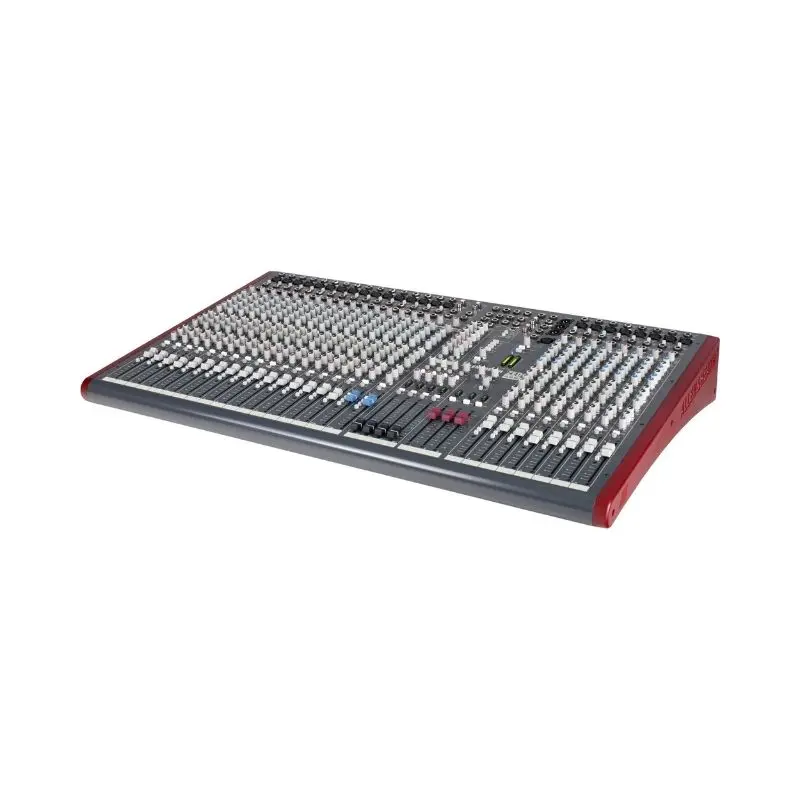

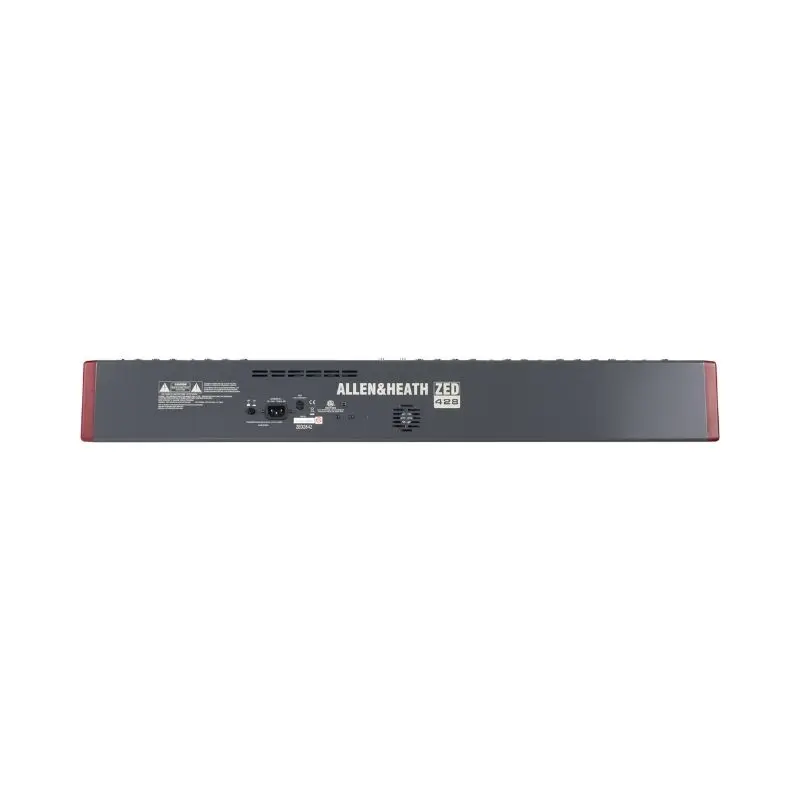

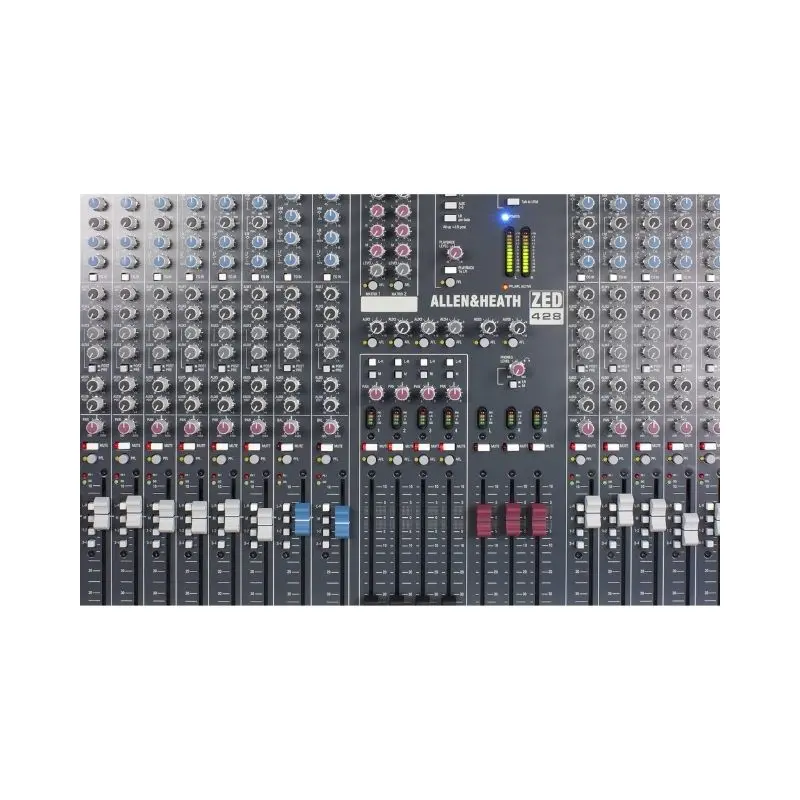

Allen & Heath ZED-428 28-Channel 4-Bus USB Analog Mixer

AED 8,885

Prices are inclusive of VAT

The Allen & Heath ZED-428 is a professional 28-channel analog mixing console built for live sound, studio recording, and advanced audio routing. With DuoPre preamps, 4-band EQ, extensive aux and subgroup outputs, and USB connectivity, it delivers powerful performance for demanding sound engineers.

OUT OF STOCK

This product is out of stock, but you can request a quote.

The Allen & Heath ZED-428 analog mixer is a high-capacity 28-channel console engineered for live sound reinforcement, studio recording, and flexible audio production environments. It features 24 mono channels with Neutrik XLR and ¼″ line inputs, powered by Allen & Heath’s renowned DuoPre microphone preamps for clean, dynamic audio capture. Each mono channel includes phantom power, ¼″ inserts, and a 4-band EQ with dual sweepable mid frequencies, providing precise tonal shaping and control. Two dedicated stereo channels with full 4-band EQ allow seamless integration of keyboards, media players, and playback sources. The mixer offers six aux sends, four subgroup outputs, and dual matrix outputs, enabling advanced monitor mixes, effects routing, and signal distribution. An integrated 2-in/2-out USB audio interface allows easy stereo recording and playback with Mac and Windows systems. 100mm long-throw faders, solo and mute switches, and intuitive layout ensure smooth hands-on mixing control. Additional professional features such as direct outputs, XLR main outputs with inserts, built-in talkback microphone, and flexible headphone monitoring make the ZED-428 a reliable centerpiece for professional audio workflows.

High-Channel Count with Professional Sound Quality

The Allen & Heath ZED-428 delivers 28 channels of analog mixing, ideal for full bands, venues, and complex audio setups. Its 24 mono channels with DuoPre preamps provide exceptional headroom and low-noise performance. Neutrik XLR and ¼″ combo connectivity ensures reliable signal transmission from microphones and instruments. The inclusion of phantom power and channel inserts supports professional microphones and outboard processing. This design ensures consistent, studio-grade sound quality across all inputs.

Advanced Routing, EQ & USB Recording

The ZED-428 features a 4-band EQ with sweepable mids on mono channels for precise frequency shaping in live and studio environments. Six aux sends allow multiple monitor mixes and external effects integration. Four subgroup outputs and dual matrix outputs enable flexible signal routing for FOH, recording, and multi-zone audio distribution. The built-in 2-in/2-out USB interface simplifies stereo recording and playback without additional hardware. Combined with 100mm faders and intuitive controls, it ensures efficient, professional-level mixing workflows.

  • 28-channel professional analog mixing console
  • 24 mono inputs with DuoPre microphone preamps
  • Neutrik XLR and ¼″ line inputs with phantom power
  • 4-band EQ with sweepable mid frequencies on mono channels
  • Two stereo channels with full 4-band EQ
  • Six aux sends for monitors and effects
  • Four subgroup outputs and two matrix outputs
  • Built-in 2-in/2-out USB audio interface
  • 100mm long-throw faders with solo and mute switches
SpecificationDetails
Product TypeAnalog Mixing Console
Total Channels28
Mono Inputs24 Mic/Line
Stereo Inputs2
PreampsAllen & Heath DuoPre
EQ4-Band EQ with Sweepable Mids
Aux Sends6
Subgroups4
Matrix Outputs2
USB Interface2-In / 2-Out
Main OutputsXLR with Inserts
Faders100mm Long-Throw
Headphone OutputsStereo / Mono
CompatibilityMac & Windows
ApplicationsLive Sound, Studio Recording, Venues
BrandAllen & Heath
