General Features
| Specification | Details |
|---|
| Channels | 2 channels + Mic + Aux |
| Effects | Dub Echo, Delay, Spiral, Reverb, Trans, Flanger, Pitch, Roll, Sweep, Filter |
| Analog Inputs | 3 x stereo RCA pairs (line), 2 x stereo RCA pairs (phono), 1 x 1/4″ (mic) |
| Analog Outputs | 2 x XLR (master out), 1 x stereo RCA pair (master 2 out) |
| Headphones | 1 x 1/4″, 1 x 1/8″ |
| USB | 1 x Type B, 1 x Type A |
| Crossfader | Magvel fader |
| EQs | 3-band EQ |
Audio and Performance
Faders: 2 Channel Level, 1 Crossfader
Meters: LED
Sample Rate: 48 kHz
Bit Depth: 24-Bit
Frequency Response: 20 Hz to 20 kHz (Line)
Performance Controls: BPM Counter, EQ, Pitch Control
Built-in Effects: Delay, Echo (Dub-Style), Flanger
THD (Total Harmonic Distortion): 0.005% (Line/Master)
Crosstalk: 90 dB (Line)
EQ
Channel EQ:Hi: -26 to +6 dB at 20 kHzMid: -26 to +6 dB at 1 kHzLow: -26 to +6 dB at 20 HzMic EQ:Hi: -12 to +0 dB at 10 kHzLow: -12 to +0 dB at 100 Hz

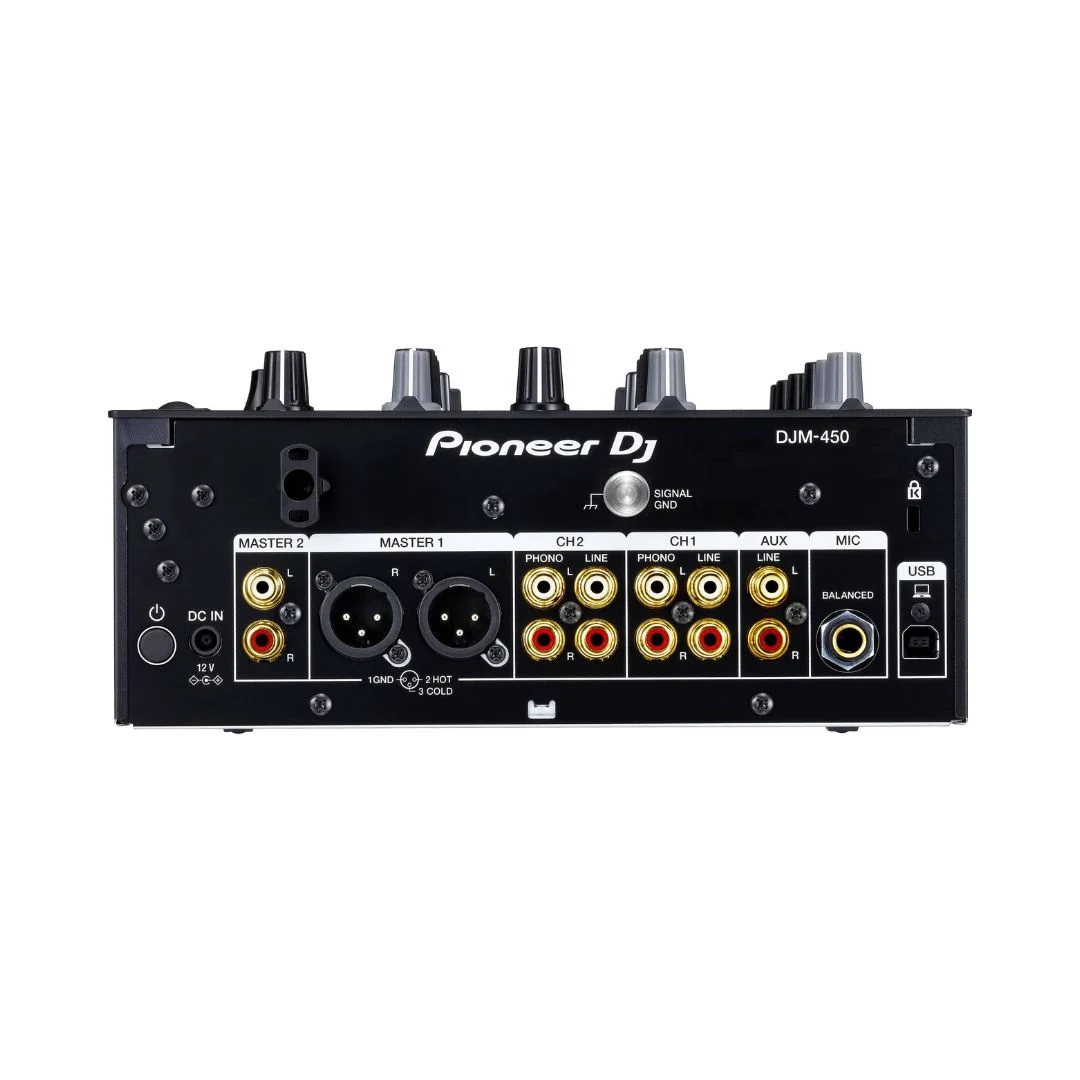

Connectivity
Audio Inputs:2x Stereo RCA (Line)2x Stereo RCA (Phono)1x Stereo RCA (Aux)1x 1/4″ TS (Mic)Audio Outputs:2x XLR 3-Pin (Master)1x Stereo RCA (Master)1x 1/4″ TRS (Headphone)1x 1/8″ / 3.5 mm TRS (Headphone)Other I/O: 1x Phono Ground TerminalUSB: 1x USB-B
Software and Power
Included Software: rekordbox DVS
OS Compatibility: macOS / Windows, iOS
App Name: DJM REC
Required Hardware: USB 2.0 Port
Power Requirements: AC/DC Power Adapter (Included)
Power Consumption: 0.5 W (Standby)
Current Consumption: 600 to 1700 mA
